SLG 4000 CNC

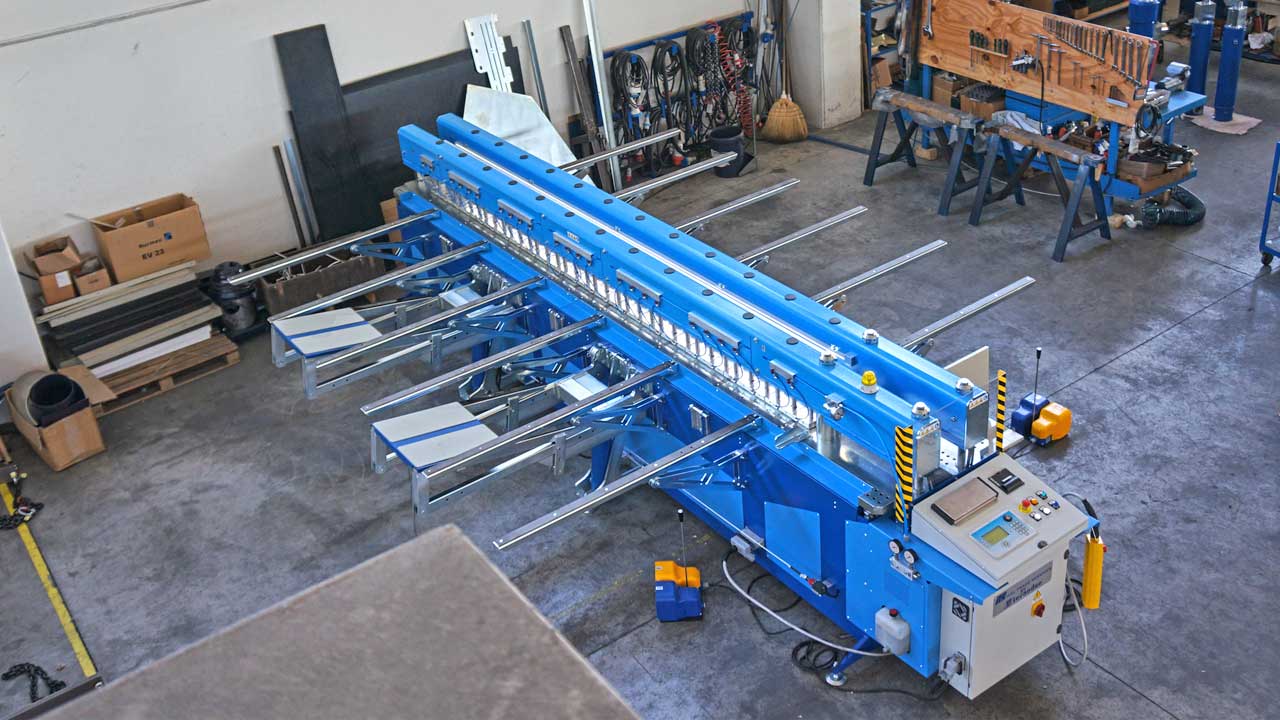

CNC-controlled automatic welding machine suitable for the butt welding of plastic sheets and also suitable for the welding of Paneltim® panels.
It is equipped with pressers divided into segments, each with hydraulic clamping, so as to ensure uniformity of sheet clamping, even in the case of short pieces of sheet.
An LED light illuminates the welding area, for perfect positioning of the sheets to be welded.
It can be equipped with a sheets winding device with three independent motors that can be controlled separately via a convenient push-button panel; this allows the user to be able to precisely control the pulling of the belts and the perfect wrapping of the slab.
In addition, the two side conveyor rollers can be positioned as desired depending on the width of the slab.
The machine can also be equipped with the 90° welding device.
The welding machine can be equipped with the 90° welding deviceor the winding device.
- Basic machine with table for sheets long up to 4000 mm complete with hydraulic system, hydraulic sectored pressing bars.
- CNC control console. Automatic welding cycle for PP, PE, PVC and other materials. Custom programs can be added.
- Foot pedals to control the pressers during loading phases.
- Manual curb lever.
Accessories:
- 90° welding device, consisting of suction cup system for gripping vertical sheets.
Vacuum pump on board the machine. No compressed air connection required.
Retractable guides for precise positioning of the vertical sheet.
Automatic heating mirror positioning depending on the set thickness.

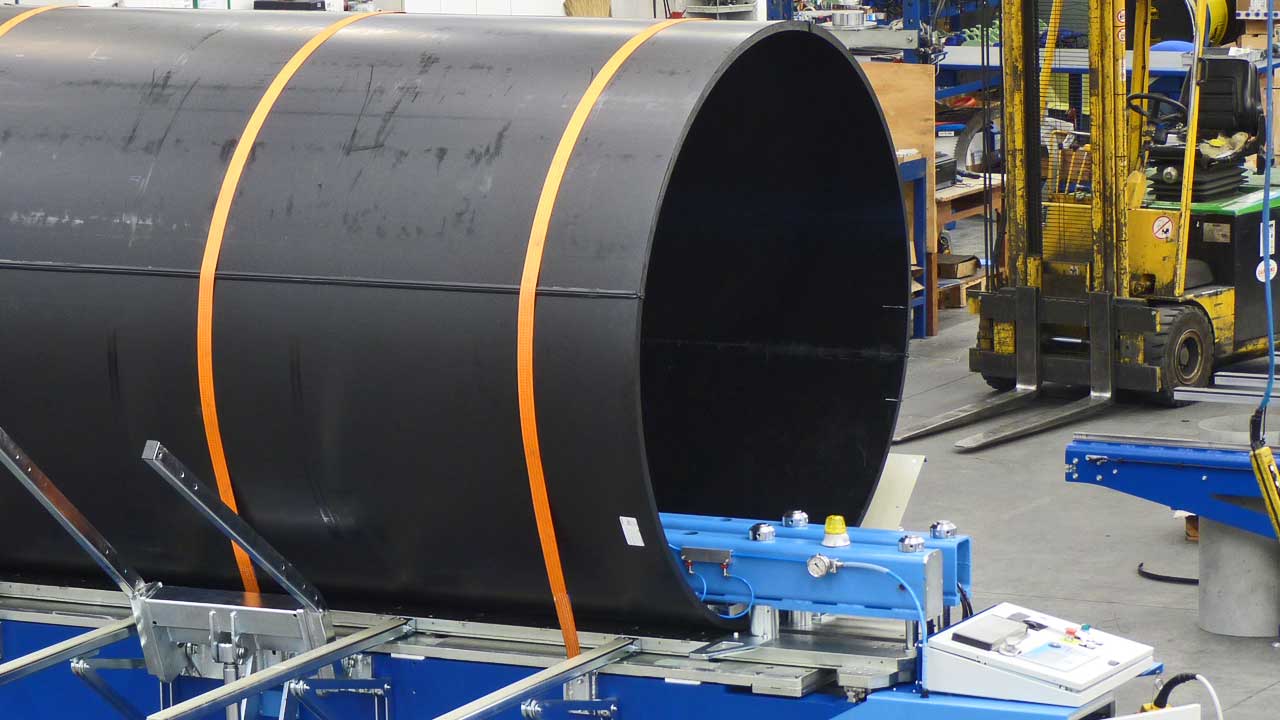

Additional frame complete with brackets and pushers for anchoring large slabs. - Three-motors sheets winding device: allows one operator to make a virola and obtain a tube from a sheet. Comes complete with: three-belt device with adjustable position.
Control of the three independent motors + general button. It is also possible to exclude 1 or 2 belts.
Quick assembly/disassembly virola guide slides.
| Range: | PP: mm 4000 x 3-50 PE: mm 4000 x 3-40 PVC: mm 4000 x 3-10 / Alveolar panels (Paneltim® , Simona®, ...) |
| Power supply: | 400V three-phase |
| Frequency: | 50 / 60 Hz |
