POLY 75

The POLY series machines are the ideal solution to the problems of socket welding of PP, PE, and PVDF pipes and fittings in both thermal sanitary and industrial applications.
They have a versatile and lightweight structure and are equipped with a heating mirror with two types of temperature control, which ensures greater accuracy when working.
The PTFE-coated bushings have the prescribed taper, complying with the strictest European standards including DVS 2208-1.
In the POLY 75, machine movement is via a handy handwheel. It is equipped with a caulking depth selector that automatically adjusts the depth according to the selected diameter, stops for positioning the tube or fitting, two prismatic clamps, and polyfusion temperature adjustment.

Manual machine for socket welding of PP, PE and PVDF pipes and fittings
for both thermal-sanitary and industrial applications.
The special "V" vices allow clamping of pipes and fittings of all kinds.
The handy front handwheel allows movement of the machine.
It also features a side pipe support for all diameters.
Reference stops for positioning the pipe or fitting.

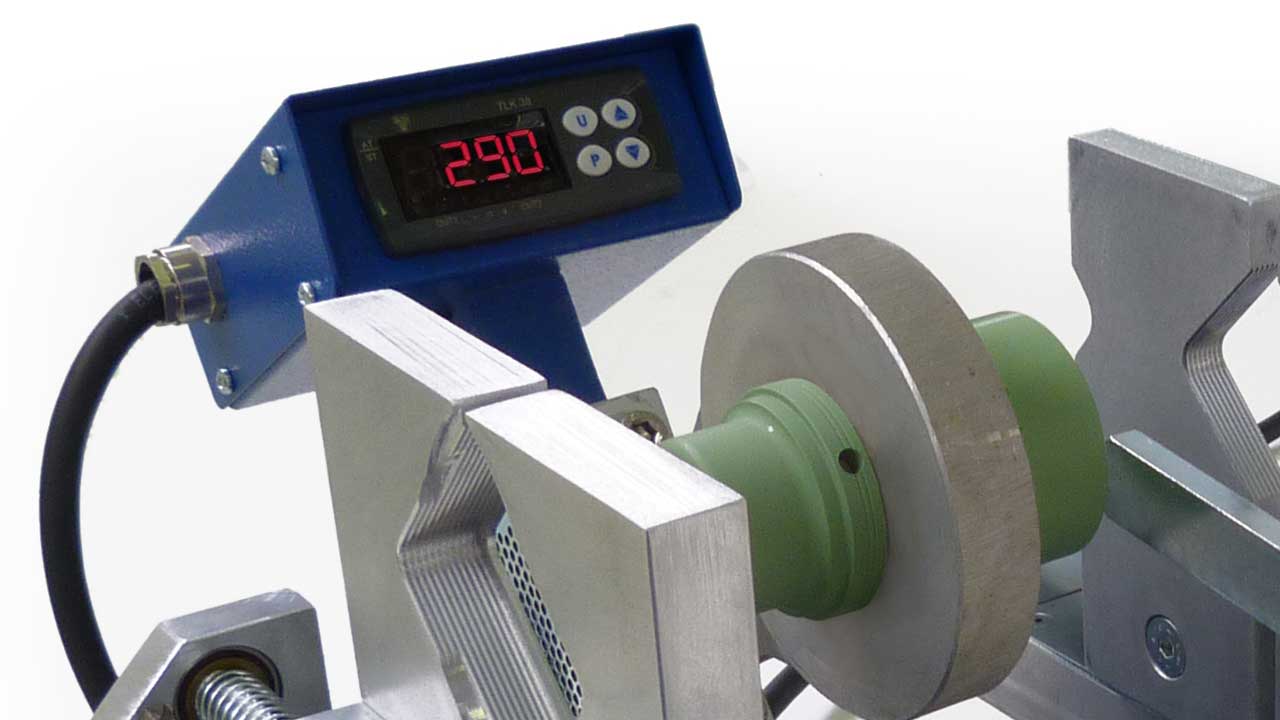

Rotatable heating mirror with electronic temperature control.
A keying depth selector that automatically adjusts the insertion
of the part to be welded according to the selected diameter.
Teflon-coated socket pairs d. 16, 20, 25, 32, 40, 50, 63, 75 mm.
Wooden crate for transportation (55x57x52h cm)
