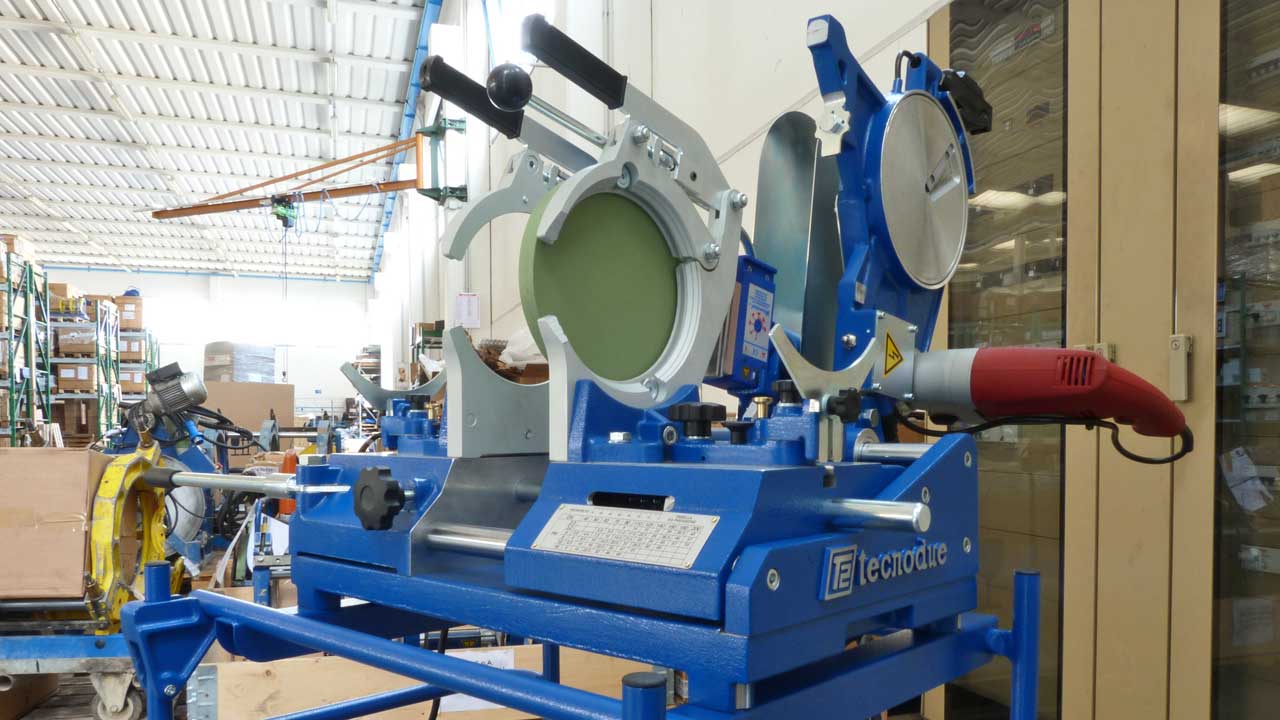

WORLD 160
Very solid and sturdy machine, suitable for workshop use, suitable for butt welding of PE and PP pipes and fittings for drainage.
The clamps are both inclinable by 7.5° for the fabrication of segmented bends (total angle: 15°).

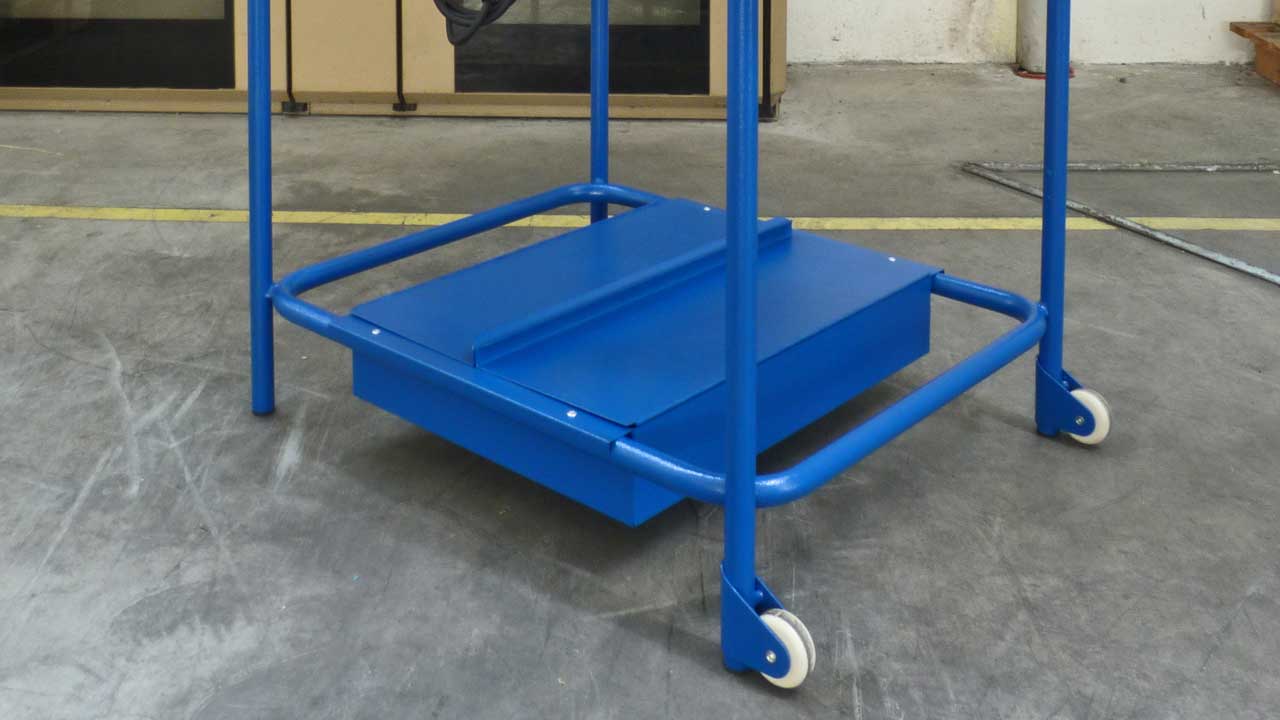

The machine body can be rotated inside the frame itself to allow easy transport.
- Basic machine consisting of two light-alloy trolleys, one of which is mounted on axial bearings and slides on chromed and ground rods d. 25mm.

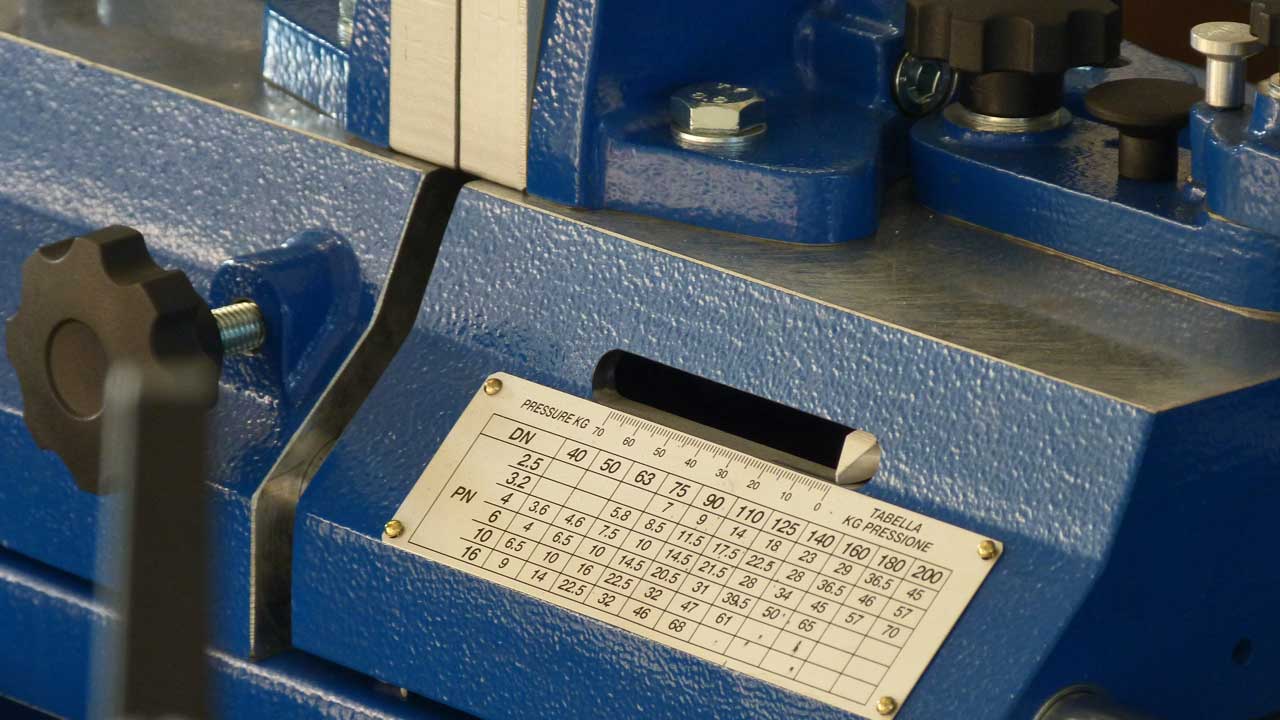

The translation lever, in addition to making the movement, acts on an index that shows on a graduated scale the values of the tube to be welded. The handy drawer contains all reductions and accessories. - Electric facing tool with insertion consent and operated by a control on the handle.
- heating mirror running on a d. 25 mm rod, PTFE-coated and with

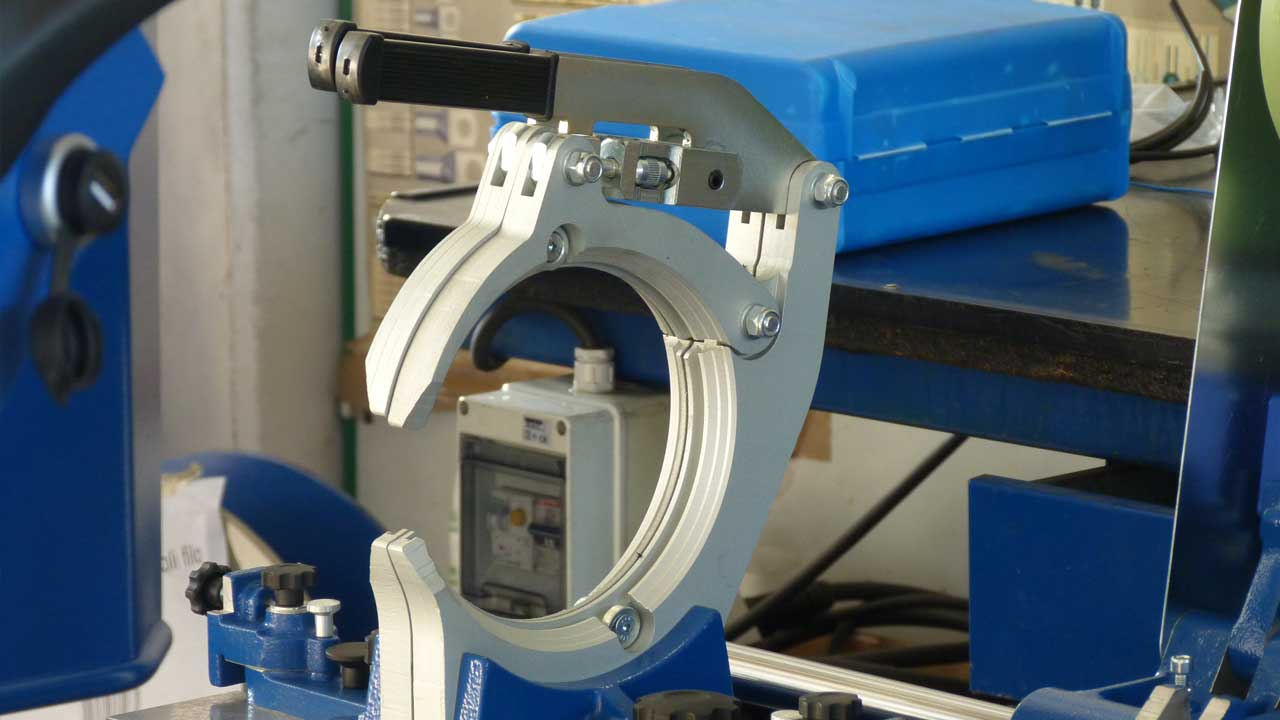

temperature adjustment. It is also easily removable for manual use. - Right and left clamps d. 160 mm equipped with a locking system that makes them
suitable for welding segmented bends and fittings and are pivoting 7.5° each. - Vice reductions d. 40 - 50 - 63 - 75 - 90 - 110 - 125 - 140 mm.
- Side supports and associated reductions for all diameters.
| Range: | Ø 40-160 mm |
| Power supply: | 230V single-phase |
| Frequency: | 50 / 60 Hz |
